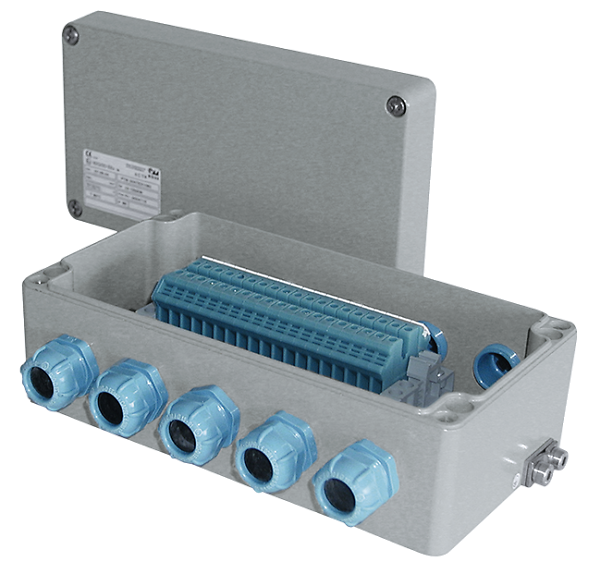

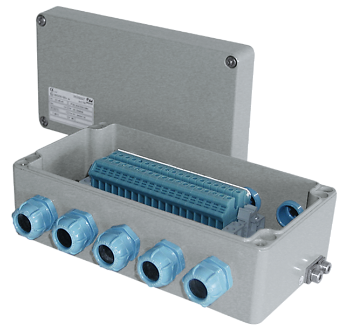

Exia Aluminium Klemmengehäuse mit Kabelverschraubungen

Ex ATEX aluminum housing

Die-cast aluminum enclosure systems for use in all hazardous areas

Version as empty enclosure for individual installations or as Ex e / Ex ia terminal enclosure
Optional version with inspection window
Temperature classes T6 / T5 / T4
Production according to EC directive 94/9 (ATEX 100a)

Enclosure Material:

Die-cast aluminum DIN EN 1706 EN AC-AlSi 12 (Fe)

Colour:

RAL 7001, silver gray

Protection Class:

IP 66 according to EN 60529

Explosion Protection:

EX II 2 G / 2 D

Ex e II T6 (increased safety)

Ex ia IIC T6 (intrinsic safety)

Ex e(ia) IIC T6 (mixed equipment)

Test certificates:

Empty enclosure: PTB 98 ATEX 3101U

Terminal enclosure: PTB 00 ATEX 1063

Impact resistance:

> 7 joules according to EN 50014

Temperature resistance:

-20° C to +40° C (corresponds to T6 = 85° C surface temperature)

-20° C to +55° C (corresponds to T5 = 100° C surface temperature)

-20° C to +95° C (corresponds to T4 = 135° C surface temperature)

Temperatures down to -55° C with separate marking on request

Scope of delivery:

Empty enclosure: enclosure with silicone seal and external earth connection

Terminal enclosure: enclosure system - depending on the version with silicone seal, external ground, mounting rail, internal ground connection, terminals, machining, cable glands.

Accessories:

Mounting plates
External joints / Internal joints
External mounting plates
Various paint finishes
Hexagon socket cover screws
Sealable cover screws
Mounting rails and clamps
Cable glands
Protective conductor busbar / protective conductor mounting bracket

Alle Downloads zum Produkt auf einem Blick

Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog

Rose Ex Aluminiumgehäuse PDF - DE Interner Link

Rose Ex Aluminiumgehäuse PDF - EN FR Interner Link Catalog

Ex Atex Zertifikate Link DE

Ex Atex Zertifikate Link EN Ex ATEX certificates

Ex Atex Zertifikate Link FR

Services

Benefit from our services for Ex ATEX enclosures

Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse

Mechanical processing

Gravur auf einer Aluminiumplatte. Schrift mit Farbe schwarz ausgelegt

Engraving / laser marking

Procurement

Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse

Assembly

Packing and logistics

Mechanical processing of Ex ATEX enclosures

We machine the enclosures according to your drawing. You bear no risk of rejects and you benefit from cost-effective production, fast delivery times and consistent quality, starting with a minimum quantity of 1 piece.

Learn more

Engraving and laser marking

Do you need case labeling for harsh environments? Then engraving or laser marking is just the right thing. The engraving can be covered with color afterwards.

Learn more

Procurement of components

As a full-range supplier of enclosures, it is part of our standard to also procure components that we assemble for you. Send us a parts list for this purpose and you will receive a ready-assembled enclosure.

Assembly

Our assembly is set up to deliver the enclosures to you fully assembled. Terminal blocks and cable glands of common manufacturers are available from stock. However, we will procure any desired component to provide you with an uncomplicated full service.

Learn more

Packaging and logistics

Tell us how you want your enclosures packaged. Bulk packed for quick further processing at your site or individually packed in protective foil or customer final packaging. We also offer the option of labeling with your part number or serial number.
