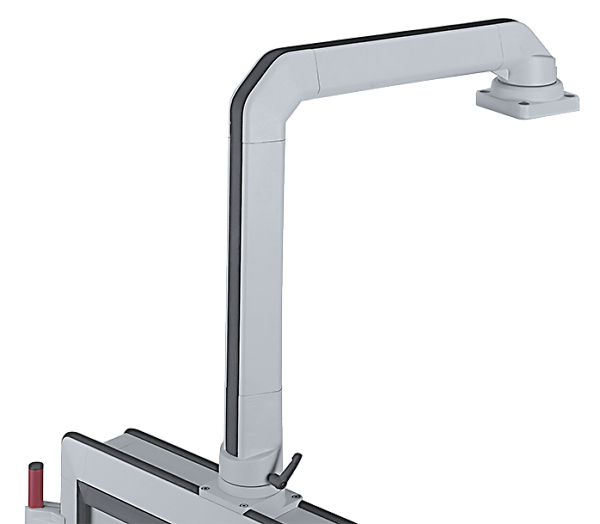

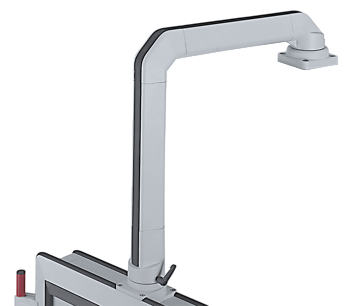

Tragarm GTK electronic mit Aufsatzgelenk
Tragarm GTK electronic mit Aufsatzgelenk

Support arm GTK electronic

Support arm GTK electronic for industrial control panel
  • Elegant support arm for operating panel up to 30 kg
  • Modular design with wall, top or floor adaption
  • Aluminum profile with accessible cable duct

Enclosure Material:

Capillary tube: DIN EN 573 EN AW-AlMgSi

Components: DIN EN 1706 EN AC-AlSi 12 (Fe)

Cover profile: TPE

Colour:

Aluminum parts: RAL 7035, light gray powder-coated

Cover profile: RAL 9005, deep black

Protection Class:

IP 54 according to EN 60529

Free cable passage:

Connecting tube: 18 mm opening

System elements: 53 mm

Scope of delivery:

Individual system components incl. cable duct cover and mounting material

Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog
Rose Tragarm GTK electronic PDF - DE Interner Link
Rose Tragarm GTK electronic PDF - EN FR Interner Link Catalog

Show more
Services

Benefit from our services for swivel arms

Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse
Mechanical processing
Pulverbeschichten von Hand
Special color
Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse
Assembly
Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse

Mechanical processing

We will cut the tubes and profiles of the support arms to length for you free of charge. Please give us the tube lengths. We are also happy to carry out other mechanical processing for you on our CNC machines.

Learn more
Pulverbeschichten von Hand

Painting in special color

If the color does not correspond to your idea or your company design, we can also paint the support arm systems in your desired color. Just let us know the RAL color, structure and gloss level you require.

Learn more
Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse

Assembly of the support arm systems

Our assembly department is equipped to deliver the support arm system completely assembled.

Learn more
