Schwenkarm höhenverstellbar mit Displayaufhängung
Schwenkarm höhenverstellbar mit Displayaufhängung

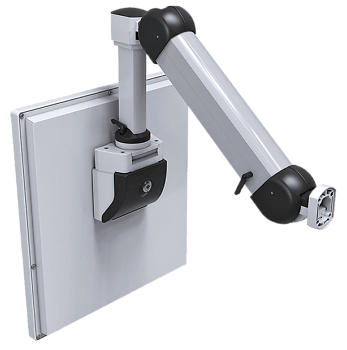

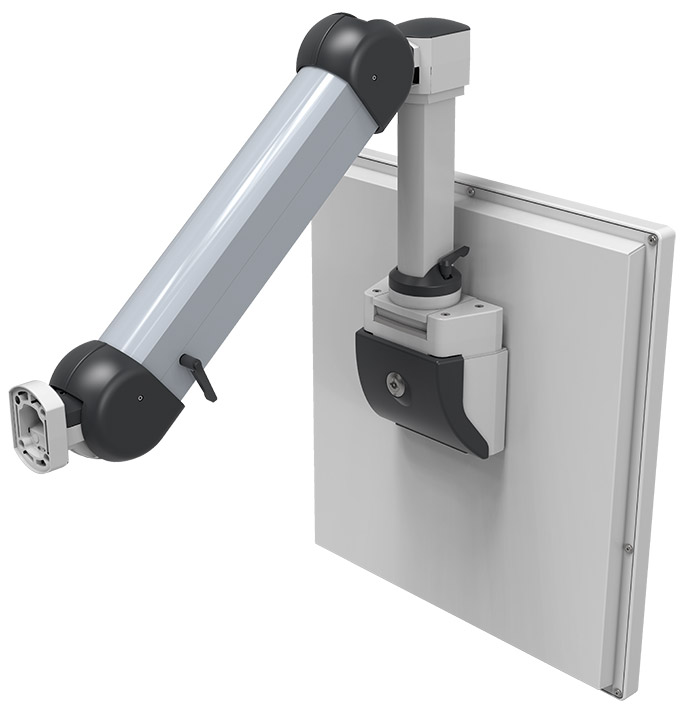

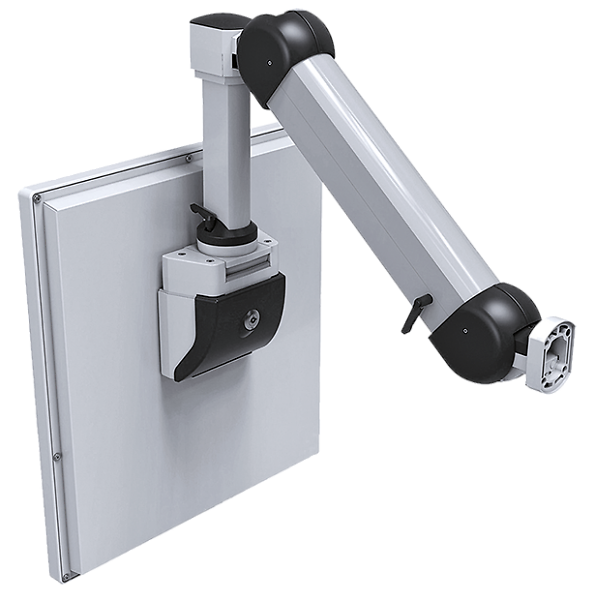

Height adjustable swivel arm GTV light

Ergonomic height adjustable swivel arm GTV light
  • Swivel arm height-adjustable for 5 to 34 kg load range
  • For ergonomic workstation design of operator enclosures and HMI panels
  • 3 strokes: 400 mm / 600 mm / 800 mm
  • Stepless adjustment and adjustable end stops
  • Adjustable load range Position can be locked
  • Subsequent integration into existing GTN II system possible
  • Generous and easily accessible cable duct
  • Flexible and modular design

Load range:

5 - 34 kg

Protection Class:

IP54

Displacement:

400 / 600 / 800 mm

Dead weight:

3.5 kg (400 mm variant)

Temperature range:

up to approx. 80 °C

Lifetime:

20,000 double strokes

Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog
Rose Tragarm GTV light PDF - DE Interner Link
Rose Tragarm GTV light PDF - EN FR Interner Link Catalog

Show more
Application examples

Application examples

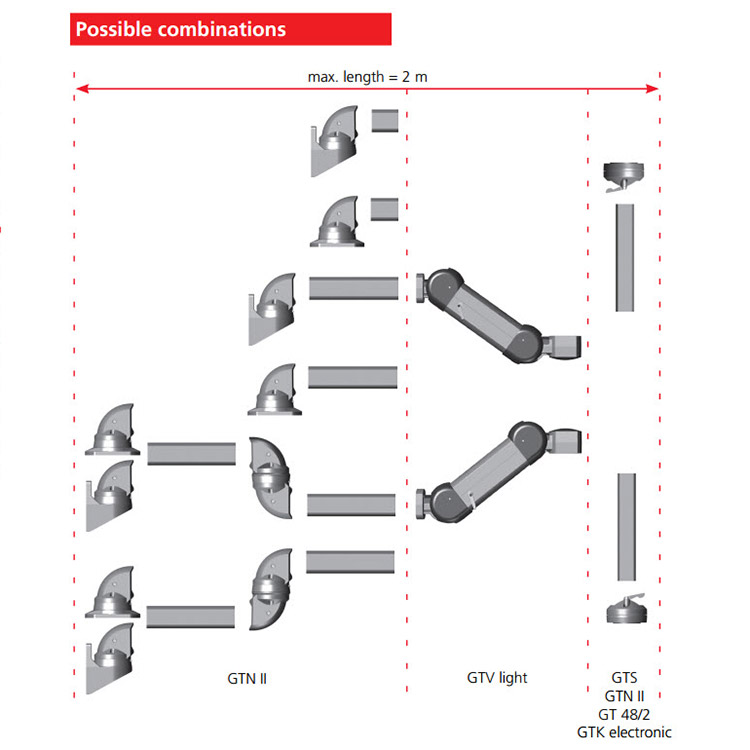

The height-adjustable GTV light offers various different combination options.

Höhenverstellbarer Schwenkarm GTV light Kombinationsmöglichkeiten
Höhenverstellbarer Schwenkarm GTV light Kombinationsmöglichkeiten

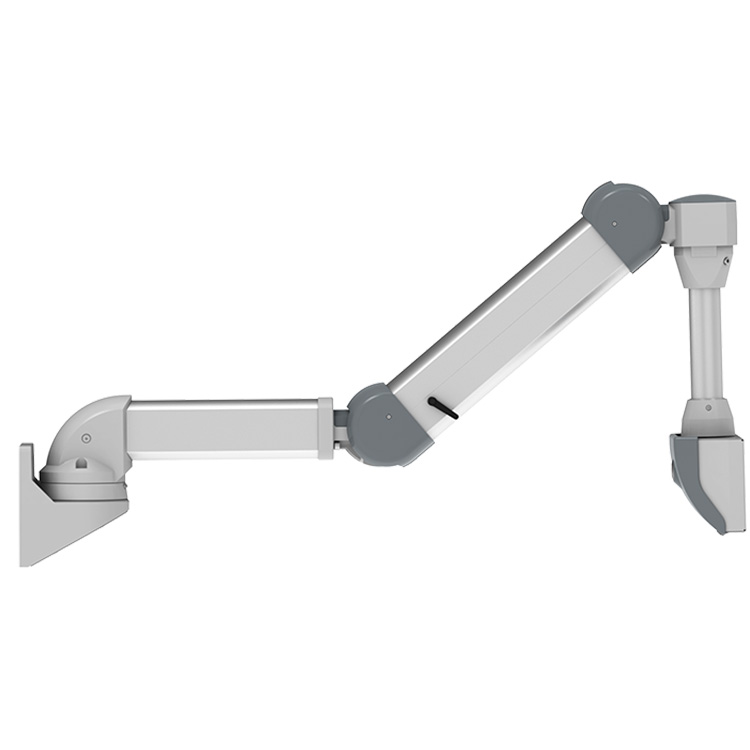

Höhenverstellbarer Schwenkarm GTV light mit VESA Halterung
Höhenverstellbarer Schwenkarm GTV light mit VESA Halterung

GTN II Wall Hinge (Art. 49477000)
GTN II Aluminium Profile closed (Art. 49472099)
GTV Light 600, Load Range 2 (Art. 49844002)
GTV Light Adapter GT 48/2 (Art. 49841002)
GT 48/2 Steel Tube (Art. 10094158)
Flat Panel Adapter GTH easy 48 (Art. 50103020)

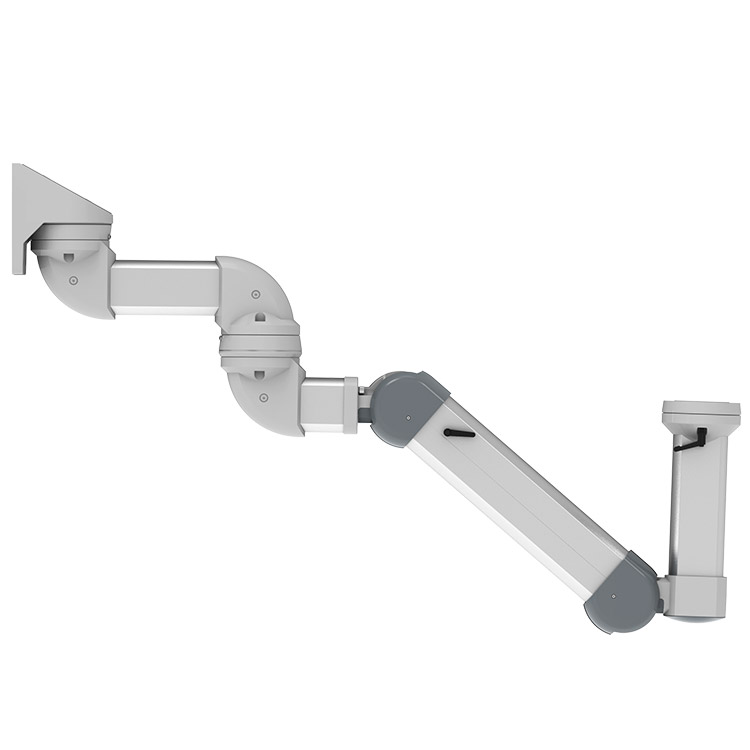

Höhenverstellbarer Schwenkarm GTV light mit Wandgelenk hängend
Höhenverstellbarer Schwenkarm GTV light mit Wandgelenk hängend

GTN II Wall Hinge hanging (Art. 49477020)
GTN II Aluminium Profile closed (Art. 49472099)
GTN II Intermediate Joint “Z” (Art. 49476700)
GTN II Aluminium Profile closed (Art. 49472099)
GTV Light 600, Load Range 2 (Art. 49844002)
GTN II Aluminium Profile closed (Art. 49472099)
GTN II Coupling (Art. 49477300)
