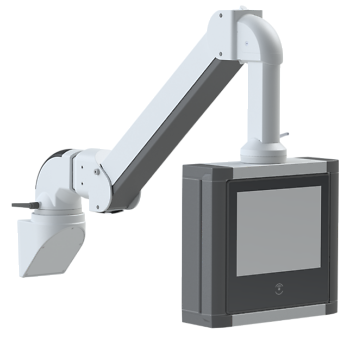

Tragarm höhenverstellbar mit Bediengehäuse

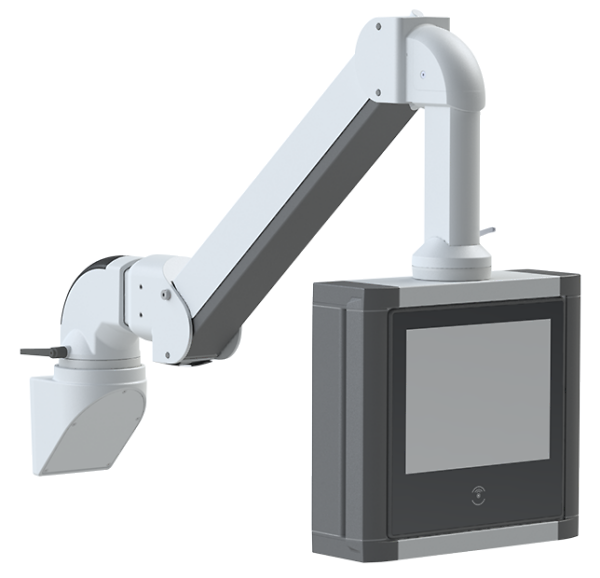

Tragarm höhenverstellbar mit Bediengehäuse

Support arm height adjustable GTV 2.0

Ergonomic height adjustable swivel arm GTV light

Support arm height adjustable for 20 to 60 kg load range
For ergonomic operation of HMI panels and machine controls
Precise adjustment of the load range by on-site adjustment screw
Can be combined with GTL / GTN II equipment carrier systems and control housings
Lockable or freely positionable design

Enclosure Material:

Connecting sheets: S235
Components: EN 1706 AC-46000DF
Cable duct cover: EN 573-3 AW-5754 H22

Colour:

Connecting plates: RAL 7016
Castings: RAL 7035
Cable duct cover: RAL 7035

Displacement:

961mm

Load range:

Load range 1 = 20 - 33 Kg

Load range 2 = 33 - 51 Kg

Load range 3 = 51 - 60 Kg

Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog
Rose Tragarm GTV 2.0 PDF - DE Interner Link
Rose Tragarm GTV 2.0 PDF - EN FR Interner Link Catalog

Show more
Services

Benefit from our services for swivel arms

Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse
Mechanical processing
Pulverbeschichten von Hand
Special color
Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse
Assembly
Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse

Mechanical processing

We will cut the tubes and profiles of the support arms to length for you free of charge. Please give us the tube lengths. We are also happy to carry out other mechanical processing for you on our CNC machines.

Learn more
Pulverbeschichten von Hand

Painting in special color

If the color does not correspond to your idea or your company design, we can also paint the support arm systems in your desired color. Just let us know the RAL color, structure and gloss level you require.

Learn more
Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse

Assembly of the support arm systems

Our assembly department is equipped to deliver the support arm system completely assembled.

Learn more
