Tragarm Edelstahl GTH
Tragarm Edelstahl GTH

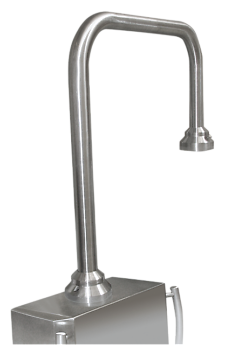

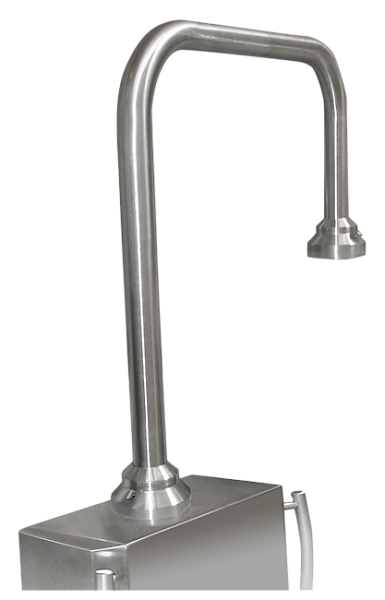

Support arm stainless steel GTH 48 / GTH 60

Stainless steel round tube support arm system GTH 48 / GTH 60
  • Hygienic design with high material quality
  • Pipe diameter 48 mm and 60 mm
  • Pipe design in S, J and I shape
  • Pipe lengths and geometry on customer request

Enclosure Material:

Tube: Stainless steel 1.4301

System components: Stainless steel 1.4305

Protection Class:

GTH 48: 41 mm

GTH 60: 53 mm

Colour:

IP 65 according to EN 60529

Surface:

Tube: ground, grain 240

Temperature resistance:

-25° C to +60° C

Scope of delivery:

Components and pipe completely assembled on request

Accessories:

Protective cap set (4 caps) for attachment joint and stand foot
Spare blind flange

Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog
Rose Tragarm GTH / GTH easy PDF - DE Interner Link
Rose Tragarm GTH / GTH easy PDF - EN FR Interner Link Catalog

Show more
Services

Benefit from our services for swivel arms

Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse
Mechanical processing
Pulverbeschichten von Hand
Special color
Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse
Assembly
Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse

Mechanical processing

We will cut the tubes and profiles of the support arms to length for you free of charge. Please give us the tube lengths. We are also happy to carry out other mechanical processing for you on our CNC machines.

Learn more
Pulverbeschichten von Hand

Painting in special color

If the color does not correspond to your idea or your company design, we can also paint the support arm systems in your desired color. Just let us know the RAL color, structure and gloss level you require.

Learn more
Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse

Assembly of the support arm systems

Our assembly department is equipped to deliver the support arm system completely assembled.

Learn more
