Edelstahl Tragarm GTH easy
Edelstahl Tragarm GTH easy

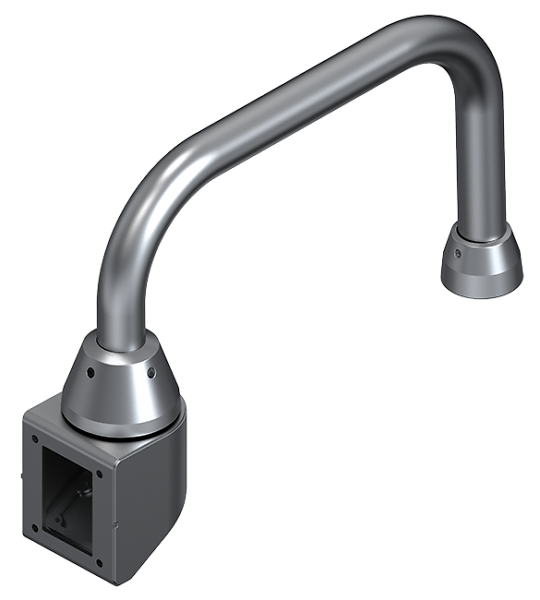

Stainless steel support arm GTH 48 easy / GTH 60 easy

Stainless steel equipment support system GTH 48 easy / GTH 60 easy
  • Support arm system with few edges for hygienic applications
  • For food, chemical and pharmaceutical applications
  • Protection class IP65 / IP69K for easy high pressure cleaning
  • Tube diameter 48 mm and 60 mm
  • Increased load range compared to GTH48/60
  • Significantly reduced installation effort

Enclosure Material:

Tube: Stainless steel 1.4301

System components: Stainless steel 1.4301

Free cable passage:

GTH 48: 41 mm

GTH 60: 53 mm

Protection Class:

IP65 / IP69K

Surface:

Tube: ground, grain 240

Temperature resistance:

-25° C to +60° C

Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog
Rose Tragarm GTH / GTH easy PDF - DE Interner Link
Rose Tragarm GTH / GTH easy PDF - EN FR Interner Link Catalog

Show more
Services

Benefit from our services for swivel arms

Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse
Mechanical processing
Pulverbeschichten von Hand
Special color
Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse
Assembly
Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse

Mechanical processing

We will cut the tubes and profiles of the support arms to length for you free of charge. Please give us the tube lengths. We are also happy to carry out other mechanical processing for you on our CNC machines.

Learn more
Pulverbeschichten von Hand

Painting in special color

If the color does not correspond to your idea or your company design, we can also paint the support arm systems in your desired color. Just let us know the RAL color, structure and gloss level you require.

Learn more
Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse

Assembly of the support arm systems

Our assembly department is equipped to deliver the support arm system completely assembled.
