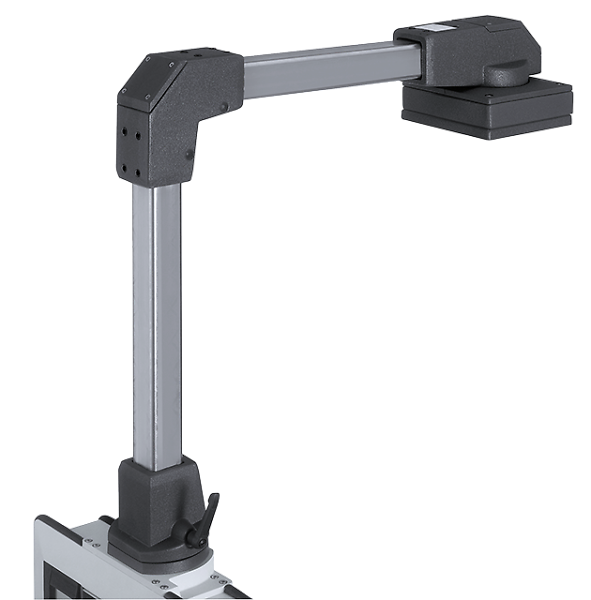

Tragarmsystem GT50/2 mit 50mm Vierkant Rohr
Tragarmsystem GT50/2 mit 50mm Vierkant Rohr

Support arm system GT 50/2

Industrial square support arm system GT 50/2 for control components
  • Robust support arm system with square tube in 3 sizes
  • For operating enclosures which are mounted swivelling on machine or plant
  • Pivotable with intermediate joint
  • Modular design with wall, top or floor adaption
  • High load capacity, large outreach possibility

Enclosure Material:

Connecting tube: Steel square tube similar to DIN EN 1706 EN 10305-5

Components: DIN EN 1706 EN AC-AlSi 12 (Fe)

Colour:

Tube: electrogalvanized

Components: RAL 7043, traffic gray B

Protection Class:

IP 65 according to EN 60529

Free cable passage:

GT 50/2: 40 x 40 mm

Scope of delivery:

Individual system components incl. mounting material

Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog
Rose Tragarm GT 50/2, GT 60/2, GT 80/2 PDF - DE Interner Link
Rose Tragarm GT 50/2, GT 60/2, GT 80/2 PDF - EN FR Interner Link Catalog

Show more
Services

Benefit from our services for swivel arms

Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse
Mechanical processing
Pulverbeschichten von Hand
Special color
Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse
Assembly
Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse

Mechanical processing

We will cut the tubes and profiles of the support arms to length for you free of charge. Please give us the tube lengths. We are also happy to carry out other mechanical processing for you on our CNC machines.

Learn more
Pulverbeschichten von Hand

Painting in special color

If the color does not correspond to your idea or your company design, we can also paint the support arm systems in your desired color. Just let us know the RAL color, structure and gloss level you require.

Learn more
Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse

Assembly of the support arm systems

Our assembly department is equipped to deliver the support arm system completely assembled.

Learn more
