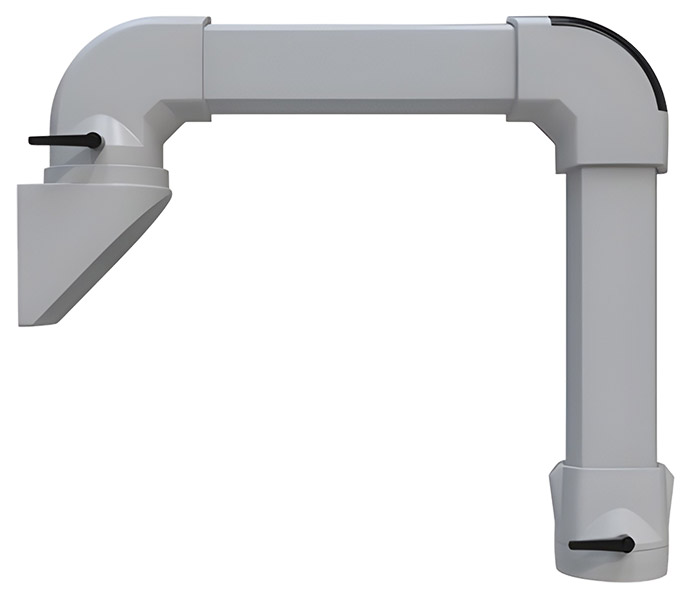

GTL Schwenkarm grau mit Wandgelenk
GTL Schwenkarm grau mit Wandgelenk

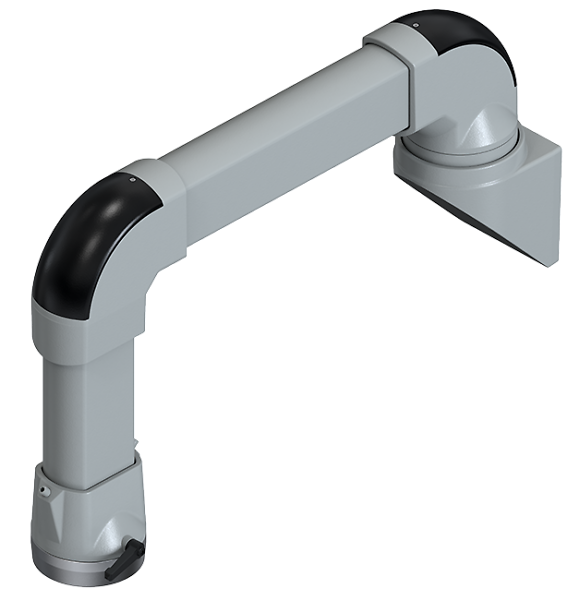

Swivel arm GTL

GTL swiveling support arm for heavy loads up to a maximum of 125 kg
  • Equipment carrier system made of aluminum profile for heavy loads

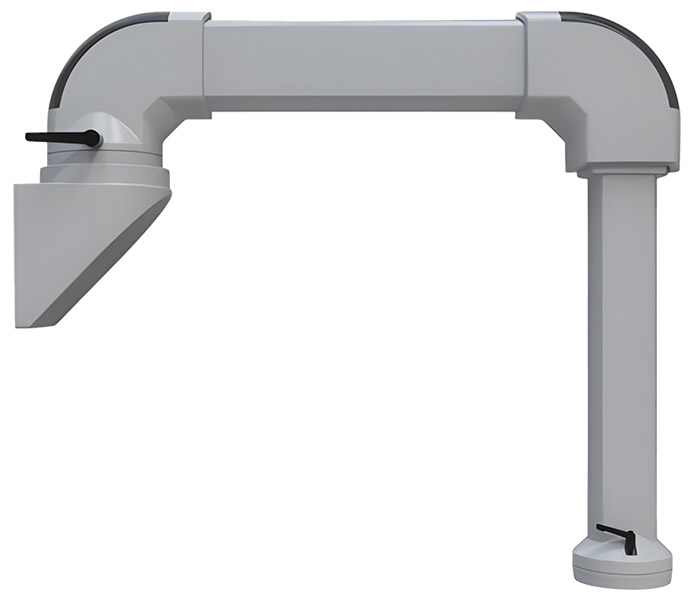

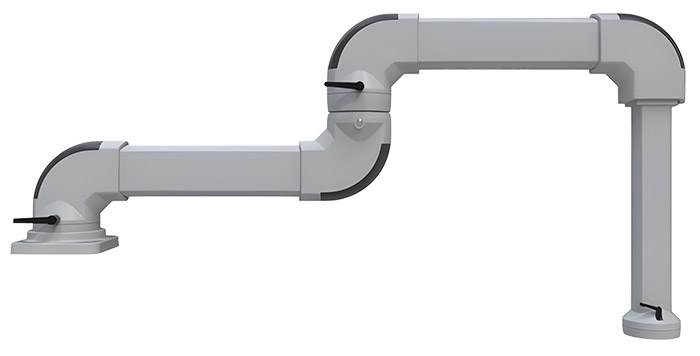

  • Can be combined with GTN II equipment carrier and GTV height adjustment system

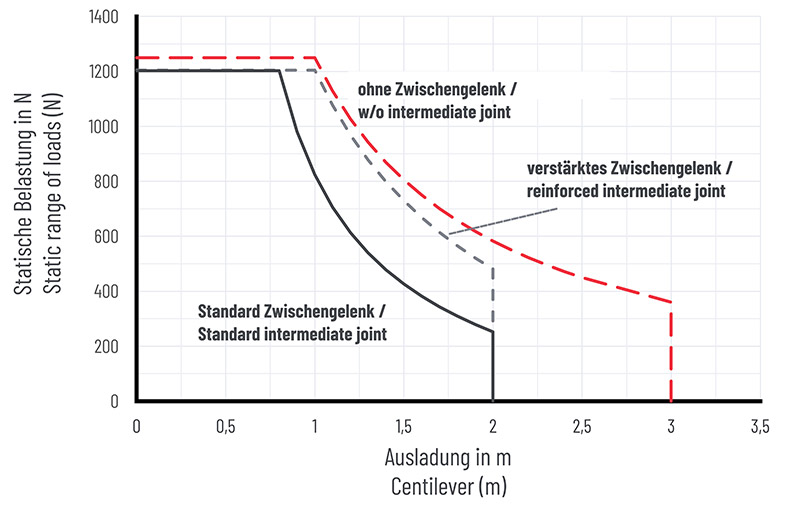

  • Max. Static load 125 kg and up to 3 meter projection
  • Horizontal alignment of the profile due to adjustment possibility

Enclosure Material:

Connecting tube: DIN EN 573 EN AW-AlMgSi;
Components: DIN EN 1706 EN AC-AlSi 12 (Fe)

Colour:

Powder coating, tube and components in RAL 7035, light gray

Protection Class:

IP 54 according to EN 60529

Scope of delivery:

Tube and components Ø 70 mm

Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog
Rose Tragarm GTL PDF - DE Interner Link
Rose Tragarm GTL PDF - EN FR Interner Link Catalog

Show more
Services

Benefit from our services for swivel arms

Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse
Mechanical processing
Pulverbeschichten von Hand
Special color
Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse
Assembly
Mechanische CNC Bearbeitung von einem Aluminium Profilgehäuse

Mechanical processing

We will cut the tubes and profiles of the support arms to length for you free of charge. Please give us the tube lengths. We are also happy to carry out other mechanical processing for you on our CNC machines.

Learn more
Pulverbeschichten von Hand

Painting in special color

If the color does not correspond to your idea or your company design, we can also paint the support arm systems in your desired color. Just let us know the RAL color, structure and gloss level you require.

Learn more
Mitarbeiter montiert Kabelverschraubungen an einem Gehäuse

Assembly of the support arm systems

Our assembly department is equipped to deliver the support arm system completely assembled.

Learn more
