Schwenkarm GTS aus Aluminium
Schwenkarm GTS aus Aluminium

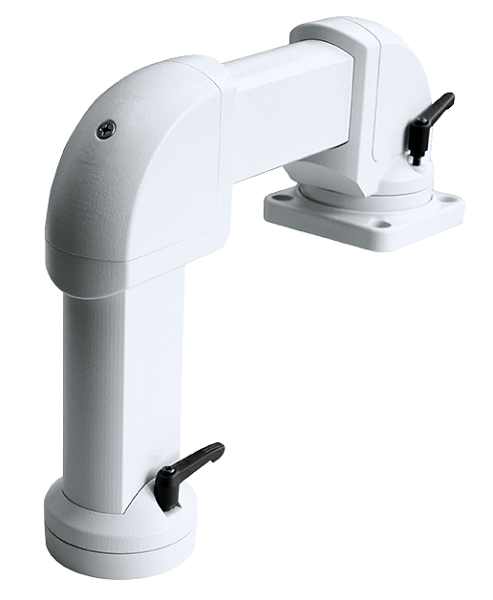

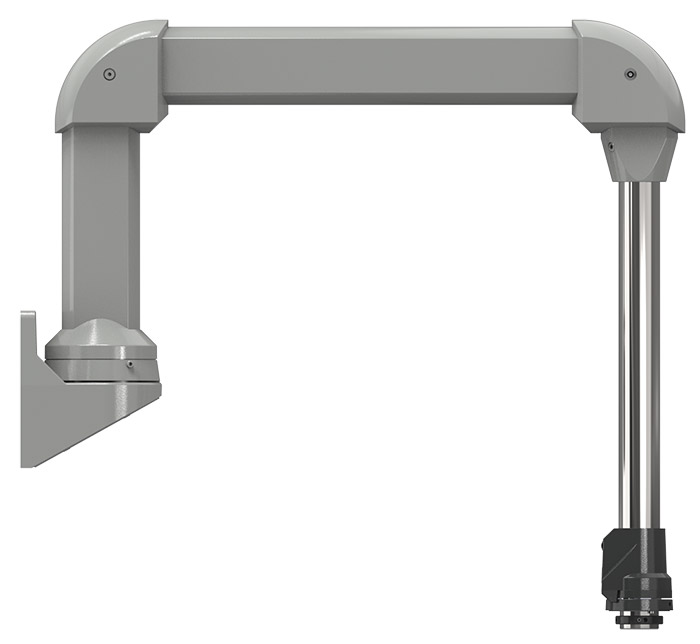

Swivel arm GTS

Slim swivel arm for light loads up to 30 kg

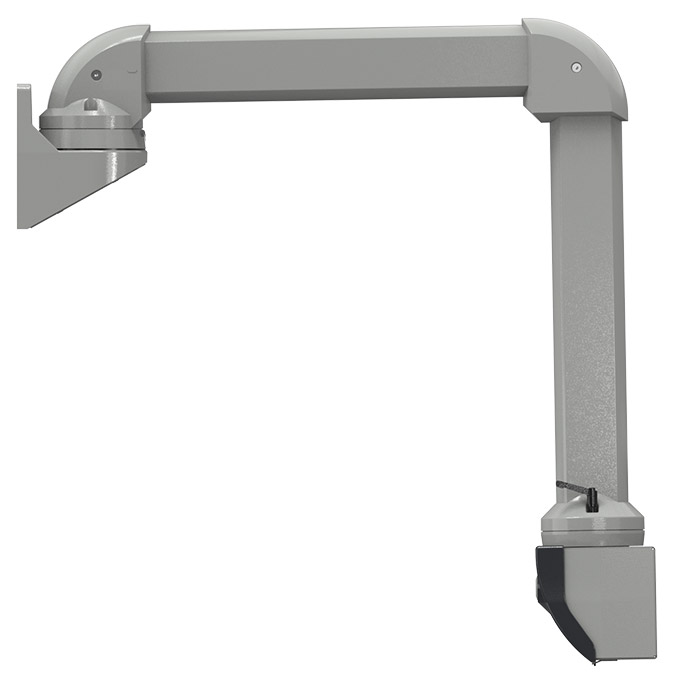

  • Swivel arm for operator enclosures and HMI panels with VESA adapter

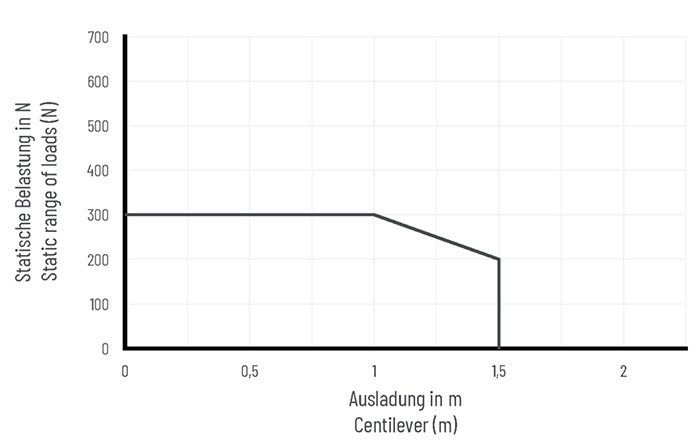

  • Max. Static load 30 kg and up to 1.5 meter projection
  • Can be combined with the larger GTN II support arm

Enclosure Material:

Capillary tube: DIN EN 573 EN AW-AlMgSi
Components: DIN EN 1706 EN AC-AlSi 12 (Fe)

Colour:

Tube, components: RAL 7035, light gray
Special colors on request

Protection Class:

IP 54 according to EN 60529

Painting:

Powder coating

Seal:

CR or PU foam 0° C to +50° C

Free cable passage:

Connecting tube: 53 x 19 mm
System components: 53 x 19 mm

Scope of delivery:

Individual system components incl. mounting material

Accessories:

  • Adapter for signal lamp M 20 x 1.5 mm
  • Adapter for signal lamp M 22 x 1.5 mm
Alle Downloads zum Produkt auf einem Blick
Informieren Sie sich noch genauer über das Produkt mit einem Blick in den Produktkatalog
Rose Tragarm GTS PDF - DE Interner Link
Rose Tragarm GTS PDF - EN FR Interner Link Catalog
