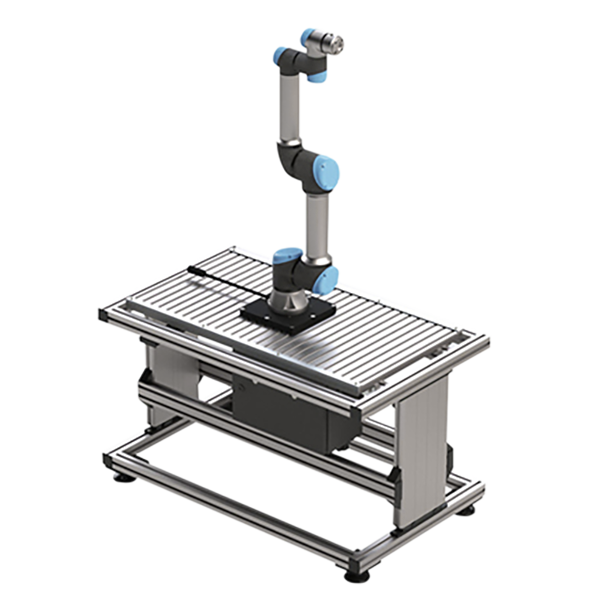

UR Robotertisch höhenverstellbar
UR Robotertisch höhenverstellbar

Robot trolley

Tables, carts and bases for your Cobot / Robot!

You want to realize an application but don't know how to integrate your Cobot yet? No problem! With our standardized robot trolleys, we have a robotics solution that is flexible and cost-effective. The carts are made of our own aluminum profiles and have a high variability. Thanks to our flexible profile system, we are also able to implement customer-specific adaptations without any problem. Due to the continuous T-slot table top, you can also mount additional tools or automation components as desired and remain flexible in your production.

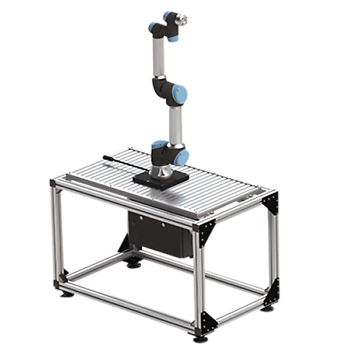

Static robot table

UR Robotertisch statisch

With our static variant you integrate the Cobot quickly and easily into your application. Thanks to our specially designed structure, the table can also be easily converted to lifting columns!

Dimensions

1270 x 756 x 840 mm

Model

Adjustable feet or lifting rollers

Width

756 mm

Length

1270 mm

Height

840 mm
Statischer Robotertisch mit Stellfüssen Baugrösse 1 Zeichnung PDF
Drawing table with adjustable feet assy 1
Statischer Robotertisch mit Stellfüssen Baugrösse 2 Zeichnung PDF
Drawing table with adjustable feet assy 2
Statischer Robotertisch mit Heberollen Baugrösse 1 Zeichnung PDF
Drawing table with lifting rollers assy 1
Statischer Robotertisch mit Heberollen Baugrösse 2 Zeichnung PDF
Drawing table with lifting rollers assy 2

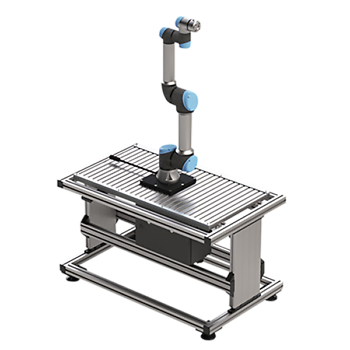

Height adjustable robot trolley

Extend the working range of your cobot with another axis and use our height-adjustable trolley. Due to the variable positioning of the robot and the possibility to adjust the height for different working areas, you can realize several applications with only one carriage!
UR Robotertisch höhenverstellbar
  • Free positioning of the robot
  • Free positioning of the controller
  • Available with lifting rollers or adjustable feet

Dimensions

1270 x 756 x 907 mm

Model

Adjustable feet or lifting rollers

Width

756 mm

Length

1270 mm

Height

907 mm
Höhenverstellbarer Roboterwagen mit Stellfüssen Baugrösse 1 Zeichnung PDF
Drawing height adjustable trolley, adjustable feet, assy 1
Höhenverstellbarer Roboterwagen mit Stellfüssen Baugrösse 2 Zeichnung PDF
Drawing height adjustable trolley, adjustable feet, assy 2
Höhenverstellbarer Roboterwagen mit Heberollen Baugrösse 1 Zeichnung PDF
Drawing height adjustable trolley, lifting rollers, assy 1
Höhenverstellbarer Roboterwagen mit Heberollen Baugrösse 2 Zeichnung PDF
Drawing height adjustable trolley, lifting rollers, assy 2

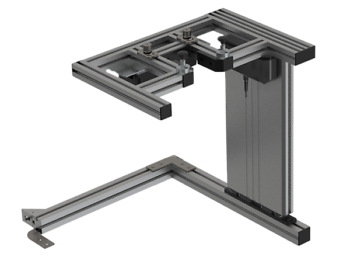

Cobot docking station at existing workstation

With our docking station you give your robot the mobility it deserves! Using our attachment, the docking station is easily attached to an existing workstation. The change from location A to B is implemented faster than ever with this device! Another advantage, the fixed installation ensures a repeatability of the work to be performed by the cobot.
Cobot Dockingstation
  • Safe positioning
  • Usable for any robot
  • Quick and easy docking system
  • Available in static and height adjustable versions

Dimensions

590 x 655 x 660 mm

Width

655 mm

Length

590 mm

Height

660 mm
Cobot Dockingstation an bestehenden Arbeitsplatz Zeichnung PDF
Drawing

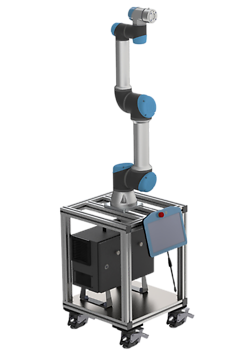

Cobot base on rollers

Our compact base allows you to store the robot and its associated components on a mobile platform. The casters allow the Cobot to be flexibly placed in different locations. This makes it ideal for universities or schools that want to install the Cobot for training and demonstration purposes on a short-term basis.
Cobot Unterbau auf Rollen
  • Minimal assembly effort
  • Can be used for any robot
  • Compact system
  • Integrated holder for controller and teach panel

Dimensions

500 x 500 x 741 mm

Width

500 mm

Length

500 mm

Height

741 mm
Cobot Unterbau auf Rollen Zeichnung PDF
Drawing

Your contact person

Contact us for an application check including a demonstration as well as an ROI calculation.
